Description:

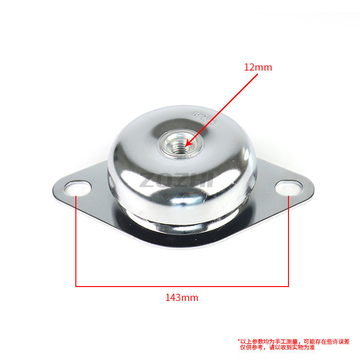

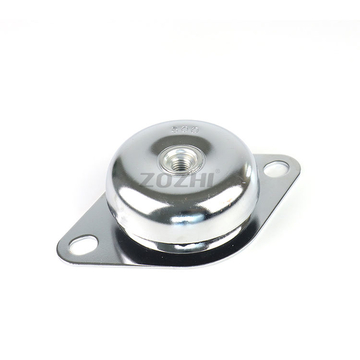

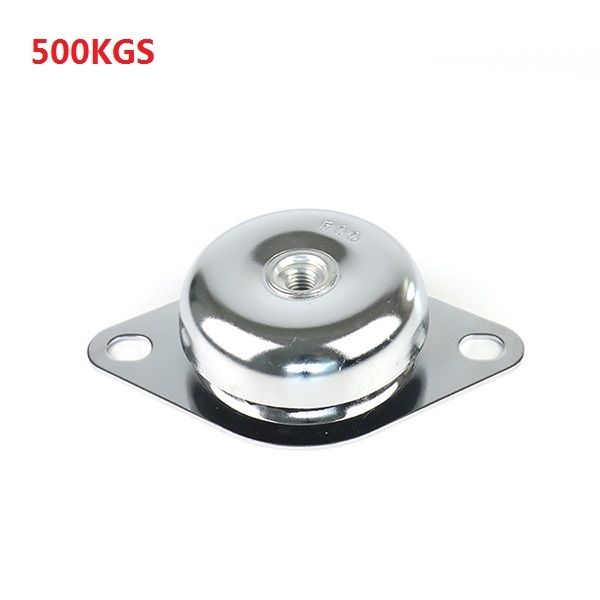

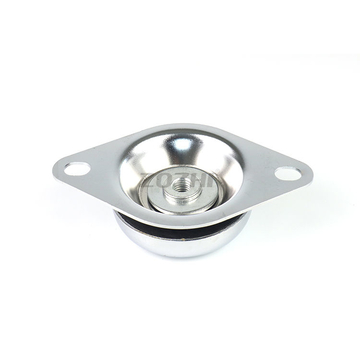

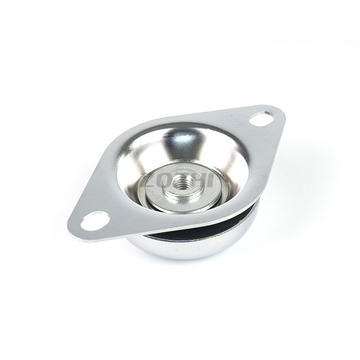

| Product Name: | Anti-vibration mount |
| Specifications: | 100~2000kg |
| Elastic component: | rubber |
| Metal parts: | white galvanized steel sheet UN-ISO 2081 |
| Applicable environment: | -40 ° C ~ 120 ° C |
Application:
A gasoline engine, motor, generator, compressor, engine, electric pump, air conditioning.
Characteristics:
Low dynamic coefficient, good anti-vibration effect, small size, low height, stable performance, easy and convenient installation, can be directly placed between the isolated unit and the ground, generally without anchor bolts, no concrete foundation, short construction period, Low investment is the ideal product for domestic power machinery to implement no basic anti-vibration
| KG | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) |
| 100KGS | 70 | 34 | M12 | 75 | 100 | 130 |
| 200KGS | 95 | 43 | M12,M14,M16 | 100 | 120 | 153 |
| 300KGS | 100 | 43 | M12,M14,M16 | 100 | 120 | 153 |
| 400KGS | 100 | 44 | M12,M14,M16 | 108 | 143 | 178 |
| 500KGS | 100 | 44 | M12,M14,M16 | 108 | 143 | 178 |
| 600KGS | 122 | 52 | M14, M16 | 125 | 158 | 190 |
| 800KGS | 150 | 56 | M18, M20 | 151 | 182 | 216 |
| 1000KGS | 150 | 56 | M18, M20 | 151 | 182 | 216 |
| 2000KGS | 151 | 58 | M20 | 143 | 130 | 167 |
