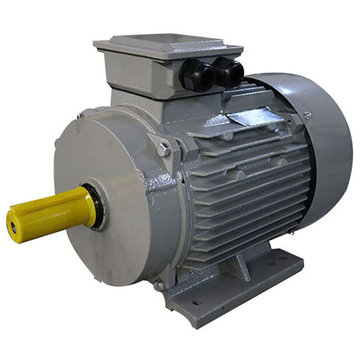

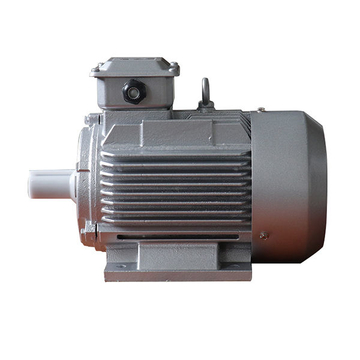

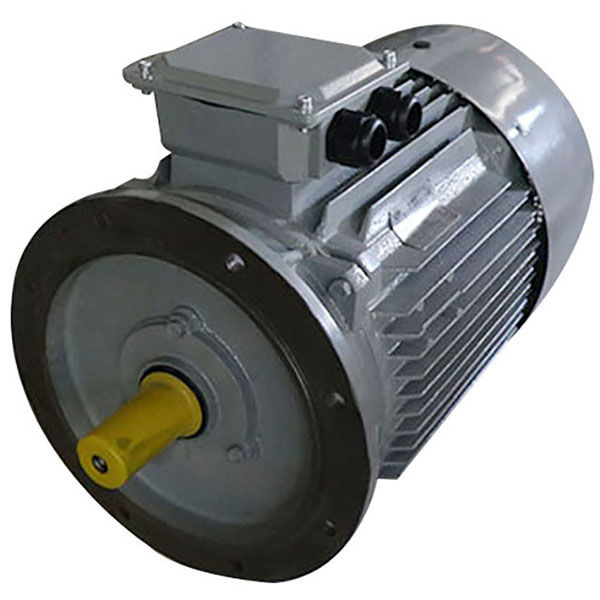

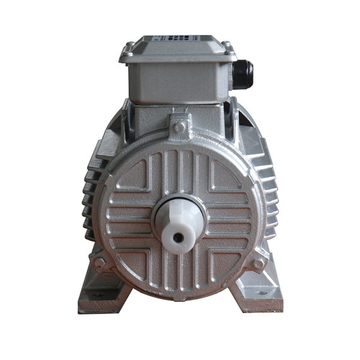

Y2 Series Cast-Iron Three Phase Induction Motor 380V/50HZ

Name: Y2 Series Cast-Iron Three Phase Induction Motor 380V/50HZ
Brand: ZOZHI
SKU: 103952
Price: 32 USD
Availability: OutOfStock

0 customer reviews {{parseInt(detail_data.left_num) ? 'In Stock.' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} SKU.103952

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews Request Quote

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Download
Questions & Answers
Customer Reviews

$ 32

0Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{detail_data.displayed_price.ex_sell_type}}

{{ item.num }} pieces

$ {{ item.price }}

{{item.name}}* {{item.values[0].value}}: {{sku.value}}

Quantity:

{{detail_data.displayed_price.unit_type_name}}(s)

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Shipping:

Free Shipping

Can't deliver

To Be Negotiated

to United States Change

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details

Total Price:

$ 32 ~~$ 0.00~~

Shipping calculated at checkout.

Weight:

{{Number(packInfo.weight).toFixed(2)}} KG

Package:

{{packInfo.length}}cm*{{packInfo.width}}cm*{{packInfo.height}}cm

Returns:

Read details

Add to Wish list

You May Also Like

2.2kw Cast Iron Three Phase Induction Motor Y2 Series

$ 66 ~~$ 0.00~~
Y2 Series Three Phase Electric Motors Totally Enclosed Fan Cooled 0.75kw

$ 36.8 ~~$ 0.00~~

Description
Description
Specification
Download
Customer Reviews
Questions & Answers

Description

Y2 Series Three Phase Induction Motor
Model	Y2 Series
Rated Power	0.12KW-315KW
Service Factor	0.72-0.89
Supply Voltage	380V
Rate Frequency	60Hz/50Hz
Structure	IP54, IP55
Insulation Grade	B/F
Bearing	NSK OR C&U
Efficiency	IE1
Color	Customizable
Ambient temperature	-15 ^. C ~40 ^. C
Weight	28kgs
Measure	40x30x23cm

The Y2 series of heavy-duty single-phase motors incorporate the latest design, fully enclosed and fan-cooled. They are newly designed to comply with the relevant requirements/rules of the IEC standard. Y2 electric motor has the advantages of high efficiency, long life, energy-saving, large starting torque, low noise, low vibration, low -temperature rise, reliable operation, and simple and convenient maintenance. The fixed measurement and power levels are fully compliant with the IEC standard.

Y2 motor has the characteristics of beautiful appearance, superior performance, and convenient maintenance. It has the advantages of large starting torque and stable rotation. Applicable to all kinds of machinery, such as pumps, transportation machinery, fans, mixers, food machinery, engineering machinery, CNC machinery, mining machinery, compressors, forging machinery, etc.

Ist/In	Power	(A)	Power	Eff.(%)	Speed	Tstart/Tn	Ist/In	Tmax/Tn
Ist/In	(kw)	(A)	Factor	Eff.(%)	(r/min)	Tstart/Tn	Ist/In	Tmax/Tn
Speed 1500 r/min (4 Poles)
Y2-631-4	0.12	0.44	0.72	57	1400	2.2	4.5	2.2
Y2-632-4	0.18	0.62	0.73	60	1400	2.2	4.5	2.2
Y2-711-4	0.25	0.79	0.74	65	1400	2.2	5.5	2.2
Y2-712-4	0.37	1.12	0.75	67	1400	2.2	5.5	2.2
Y2-801-4	0.55	1.6	0.75	71	1400	2.2	5.5	2.2
Y2-802-4	0.75	2	0.77	73	1400	2.2	6	2.2
Y2-90S-4	1.1	2.9	0.77	750	1400	2.2	6	2.2
Y2-90L-4	1.5	3.7	0.79	78	1400	2.2	6	2.2
Y2-100L1-4	2.2	5.1	0.81	80	1420	2.2	7	2.2
Y2-100L2-4	3	6.8	0.82	82	1420	2.2	7	2.2
Y2-112M-4	4	8.8	0.82	84	1440	2.2	7	2.2
Y2-132S-4	5.5	11.8	0.83	85	1440	2.2	7	2.2
Y2-132M-4	7.5	15.5	0.84	87	1440	2	7	2.2
Y2-160M-4	11	22.3	0.85	88	1460	2	7	2.2
Y2-160L-4	15	30	0.85	89	1460	2	7	2.2
Y2-180M-4	18.5	36.4	0.85	90.5	1470	2.2	7.5	2.2
Y2-180L-4	22	43.1	0.85	91	1470	2.2	7.5	2.2
Y2-200L-4	30	58.4	0.86	92	1470	2.2	7.5	2.2
Y2-225S-4	37	69.9	0.87	92.5	1480	2.2	7.5	2.2
Y2-225M-4	45	84.7	0.87	92.8	1480	2.2	7.5	2.2
Y2-250M-4	55	103	0.89	93	1480	2.2	7	2.2
Y2-280S-4	75	140	0.86	93.8	1480	2.2	7	2.2
Y2-280M-4	90	167	0.86	94.2	1490	2.2	7	2.2
Y2-315S-4	110	201	0.87	94.5	1490	2.1	6.9	2.2
Y2-315M-4	132	240	0.87	94.8	1490	2.1	6.9	2.2
Y2-315L1-4	160	287	0.88	94.9	1490	2.1	6.9	2.2
Y2-315L2-4	200	359	0.88	95	1490	2.3	6.9	2.2
Y2-355M-4	250	443	0.88	95.3	1485	2.3	6.8	2.2
Y2-355L-4	315	556	0.89	95.6	1485	2.2	6.9	2.2

Reviews from the client:

Shipping:

after 25~30days, we will delivery the goods, for loose goods better packed by the pallet for avoiding destroy

NFM-129A

centrifugal water pump vortex water pump

centrifugal electric water pump

Specification

Phase 3 Phase
Housing Cast Iron
Insulation Class B,F
Protection IP44 / IP54
Rated voltage 380V
Duty S1(continuous)
Weight 28 kg
