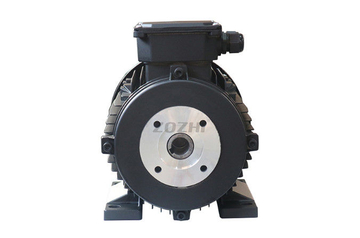

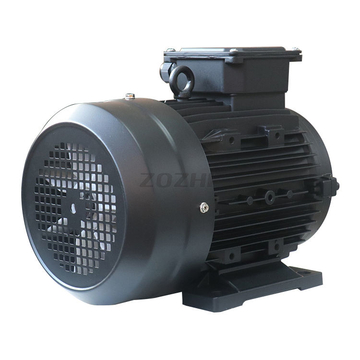

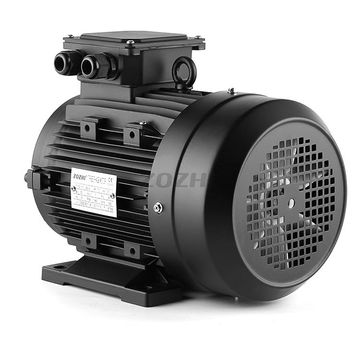

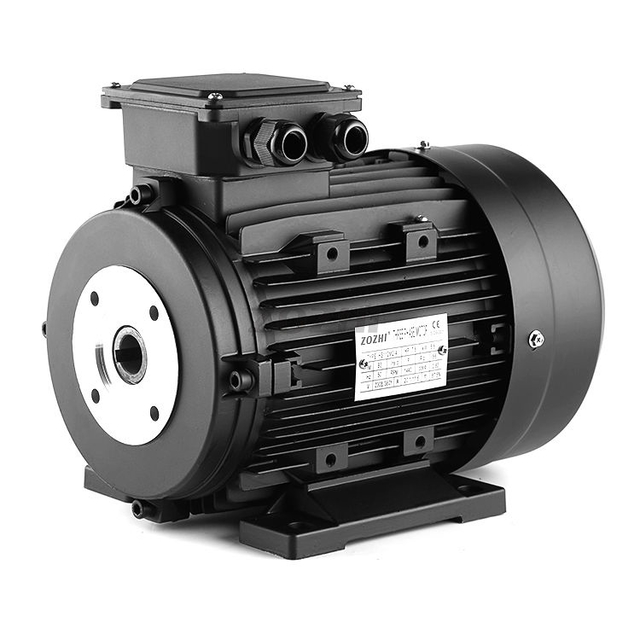

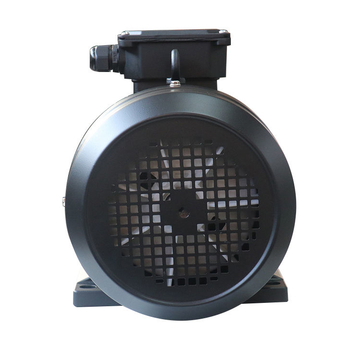

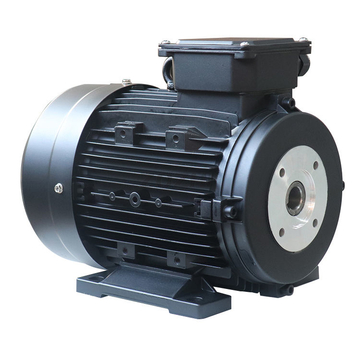

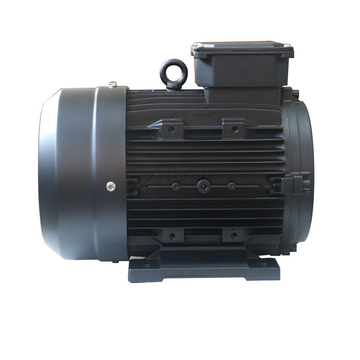

Installation B3 100% Copper Motor Hollow Shaft Electric Motor 112M2-4 5.5KW 7.5HP For Cleaner Machine

Installation B3 100% Copper Motor Hollow Shaft Electric Motor 112M2-4 5.5KW 7.5HP For Cleaner Machine

Hollow Shaft Electric Motor Description

The hollow shaft motor is a new type of motor with an internal joint designed for high-pressure pumps. It reduces the overall size of the hollow shaft and maintains all the technical and maintenance advantages of a standard motor. Adopting new technology design, 100% copper wiring, C&U bearing, shaft extension through high-frequency quenching treatment, greatly improving mechanical strength, with low-temperature rise, fast heat dissipation, high efficiency, energy-saving. Connected to the pump for high-pressure water column cleaning.

Mode: 112M2-4 Horsepower: 7.5

RPM:1400 Shaft Size:24mm Hollow

Voltage: 400V Hertz: 50

Motor housing: Aluminum Bearing: C&U

Shaft: C#45 Insulation: Class F

Protection: IP55 Installation: B3 Hollow shaft

Stator&Rotor: 1.Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire

Advantage:

1. Use high-quality materials to ensure sufficient output power, small working current, effectively reduces temperature rise, good heat dissipation, and high efficiency.
2. the use of high-quality bearings, rigorous assembly process, to achieve low noise operation.
3. tailor-made for professional equipment, shaft extension through high-frequency quenching treatment, greatly improve the mechanical strength, seamless connection with equipment, to achieve worry-free operation.

Hollow Shaft Electric Motor Application

1. 112M2-4 Hollow shaft motor With NMT pump

Environment: pressure ≤ 200bar

Water temperature ≤ 65 °C

Operating environment: professional high-pressure cleaner, motor vehicle cleaning system or spray system

2. 112M2-4 Hollow shaft motor With NPM pump

Environment: pressure ≤ 250bar

Water temperature ≤ 65 °C

Operating environment: professional high-pressure washing machine

3. 112M2-4 Hollow shaft motor With NMT-CW pump

Environment: pressure ≤ 200bar

Water temperature ≤ 65 °C

Operating environment: self-service car wash or longer service life professional pressure washer

Production line

Production data

Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.

Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.

FAQ:

1. Q: What’s the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
