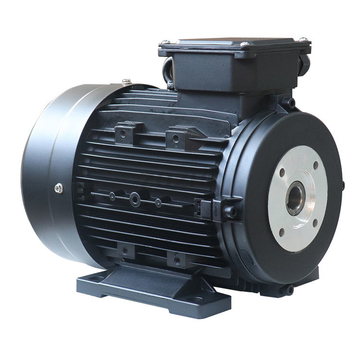

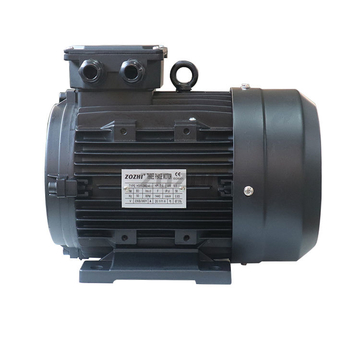

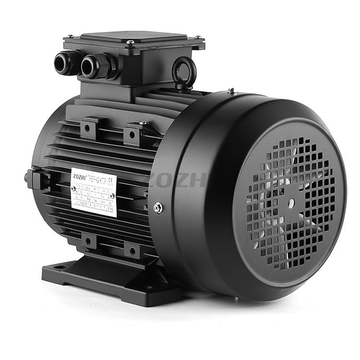

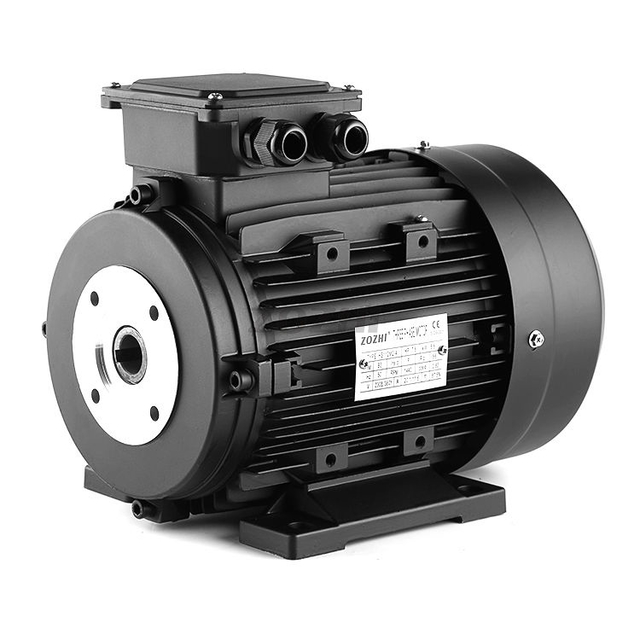

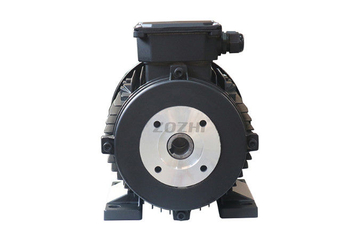

24mm Shaft 7.5Hp 112M2-4 hollow shaft electric motor 1400Rpm Three Phase

24mm Shaft 7.5Hp 112M2-4 hollow shaft electric motor 1400Rpm Three Phase

Mode: 112M2-4

Horsepower: 7.5

RPM:1400

Shaft Size:24mm Hollow

Voltage: 400V

Hertz: 50

Motor housing: Aluminum

Bearing: C&U

Shaft: C#45

Insulation: Class F

Protection: IP55

Installation: B3 Hollow shaft

Stator&Rotor: 1.Cold-rolled silicon steel sheet by high-speed punching machine.

2. 100% high-quality copper wire

● For pressure washers pumps

● Hollow-shaft coupling for direct mounting to the pump, in just a few minutes

● No need to disassemble the motor front side

● Special executions on request

Advantage:

1. Use high-quality materials to ensure sufficient output power, small working current, effectively reduces temperature rise, good heat dissipation, and high efficiency.
2. the use of high-quality bearings, rigorous assembly process, to achieve low noise operation.
3. tailor-made for professional equipment, shaft extension through high-frequency quenching treatment, greatly improve the mechanical strength, seamless connection with equipment, to achieve worry-free operation.

Hollow Shaft Electric Motor Application

1. 112M2-4 Hollow shaft motor With NMT pump

Environment: pressure ≤ 200bar

Water temperature ≤ 65 °C

Operating environment: professional high-pressure cleaner, motor vehicle cleaning system or spray system

2. 112M2-4 Hollow shaft motor With NPM pump

Environment: pressure ≤ 250bar

Water temperature ≤ 65 °C

Operating environment: professional high-pressure washing machine

3. 112M2-4 Hollow shaft motor With NMT-CW pump

Environment: pressure ≤ 200bar

Water temperature ≤ 65 °C

Operating environment: self-service car wash or longer service life professional pressure washer
