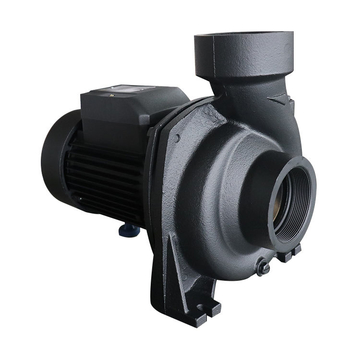

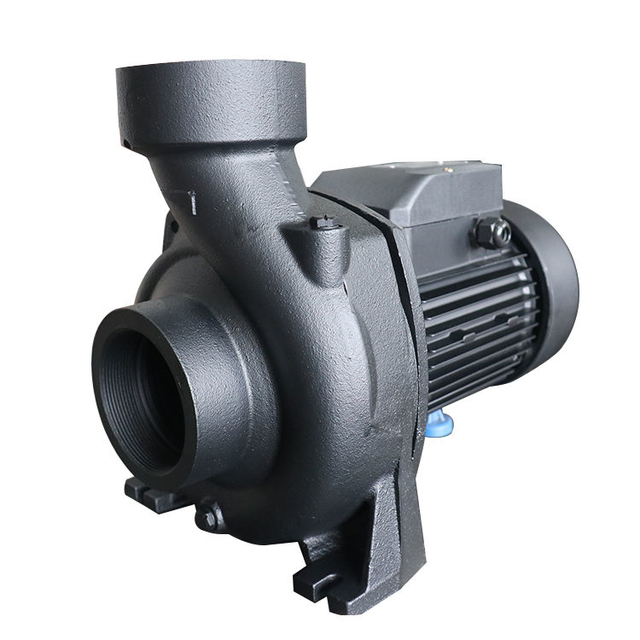

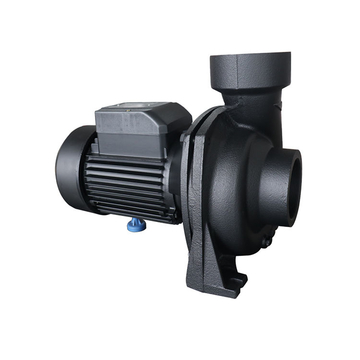

NFM-130A 3Hp Large Flow Centrifugal Water Pump With Burgman Mechanical Seal
| Product Name: Centrifugal Pump (Vortex Pump) | |||
| Product Type: NFm-130C | Brand: ZOZHI | ||
| H.max: 12 | Q.Max: 600 L/min | S.Head: 9m | |
| Volt: 220V | Ampere: 7.0A | Speed: 2850rpm | |
| Pipe Dia: 75X75mm | Net Weight: 32kg | ||
| Power: 1.5kw/2.0Hp | Measure: 435×265×350mm | ||
| Insulation: Class F | Protection: IP44 | ||
| Liquid Temperature: 0~60 ℃ | Ambient temperature:0~40℃ | ||
Application
For water supply from wells or reservoirs.
For domestic use. for civil and industrial applications.
For garden use and irrigation
Operating conditions
Max. fluid temperature +60℃
Max. ambient temperature +40℃
Max. solid impurity:0.1%,Max. particle size: 0.2mm
Motor and pump
Rewindable motor
Three-phase: 380V-415V/50HZ
Single-phase: 220V-240/50HZ
Structural characteristics
Pump body: Cast iron
Front cover: Cast iron

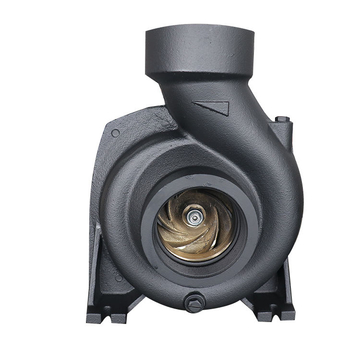

Impeller: Brass
Mechanical seal: Burgman
Shaft: Carbon steel/stainless steel
Motor case: Aluminum
Warranty: 1 year
(according to our general sales conditions)
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging:
Q: How about the package for NFM series
A: NFM129 Series pump are packed in color box with a strong foam
Reviews from the client:
Shipping:
after 25~30days, we will delivery the goods, for loose goods better packed by the pallet for avoiding destroy
