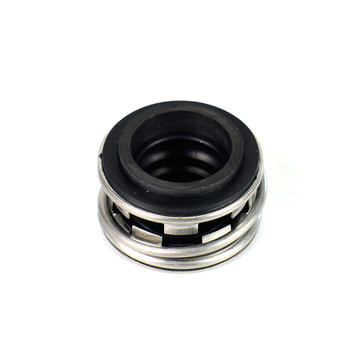

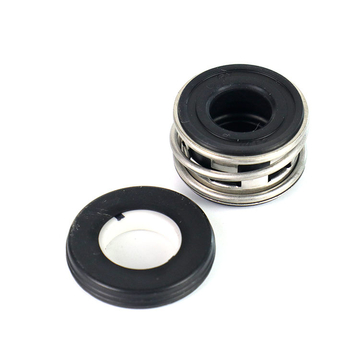

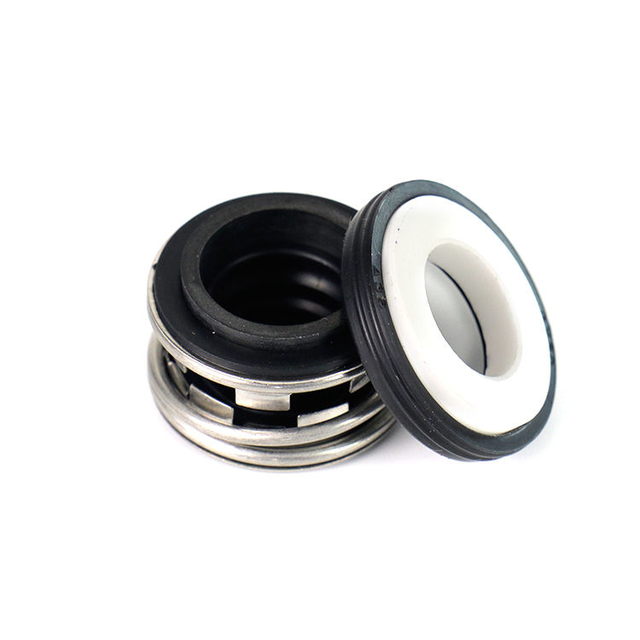

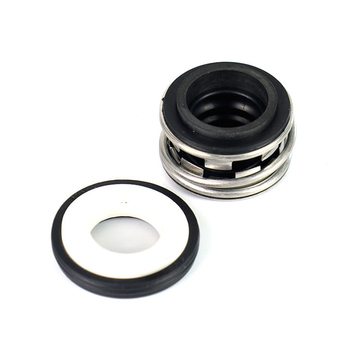

Burgmann ZZ 2100 Mechanical Seal For Water Pump

Burgmann ZZ 2100 Mechanical Seal For Water Pump

Mechanical Seal CN2100 Design Features

- Single face, single spring, unbalanced, rubber bellows structure.
- The seal face is driven through the spring seat, rubber bellows design to avoid torsion

- The installation size conforms to the standard for ISO3069 and DIN24960

Mechanical Seal CN2100 Materials(to DIN24960)

- Rotary Ring: B, U1, U2, Q1, Q2
- Stationary Ring: U1, U2,Q1,Q2, V1,V2
- Auxiliary Seal: P,E,V
- Spring and Other Parts: F, G

Mechanical Seal CN2100 Operating limits

- Pressure: ≤ 2.0MPa
- Temperature: -40~150℃
- Speeds: ≤15m/sec

Mechanical Seal CN2100 Applications

Used in different pumps, mixers, compressors, and other rotating equipment. which apply to oil, water and other weak corrosive

Mechanical Seal CN2100 Medium

Oil, water and other weak corrosive fluid

Mechanical Seal CN2100 Size Information

Model	d1	d3	D4	D7	L1K	L3	L4
CN2100-10	10	20	22	21	20	15	5
CN2100-12	12	22	24	23	21	15	6
CN2100-14	14	24	26	25	21	15	6
CN2100-15	15	25	27	26	21	15	6
CN2100-16	16	26	28	27	21	15	6
CN2100-18	18	32	34	33	26	20	6
CN2100-20	20	34	36	35	26	20	6
CN2100-22	22	36	38	37	26	20	6
CN2100-24	24	38	40	39	26	20	6
CN2100-25	25	39	41	40	26	20	6
CN2100-28	28	42	44	43	32	26	6
CN2100-30	30	44	46	45	33	26	7
CN2100-32	32	46	48	48	33	26	7
CN2100-33	33	47	49	48	33	26	7
CN2100-35	35	49	51	50	34	26	8
CN2100-38	38	54	58	56	38	30	8
CN2100-40	40	56	60	58	38	30	8
CN2100-43	43	59	63	61	38	30	8
CN2100-45	45	61	65	63	38	30	8
CN2100-48	48	64	68	66	40	30	10
CN2100-50	50	66	70	70	40	30	10
CN2100-53	53	69	73	73	40	30	10
CN2100-55	55	71	75	75	40	30	10
CN2100-58	58	78	83	78	43	33	10
CN2100-60	60	80	85	80	45	33	12
CN2100-63	63	83	88	83	45	33	12
CN2100-65	65	85	90	85	45	33	12
CN2100-68	68	88	93	90	45	33	12
CN2100-70	70	90	94	92	45	33	12
CN2100-75	75	99	104	97	52	40	12
