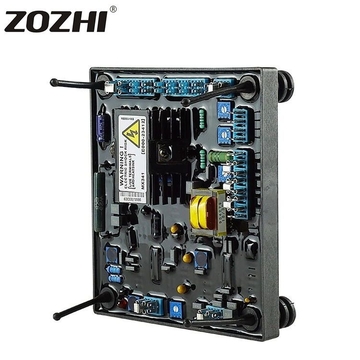

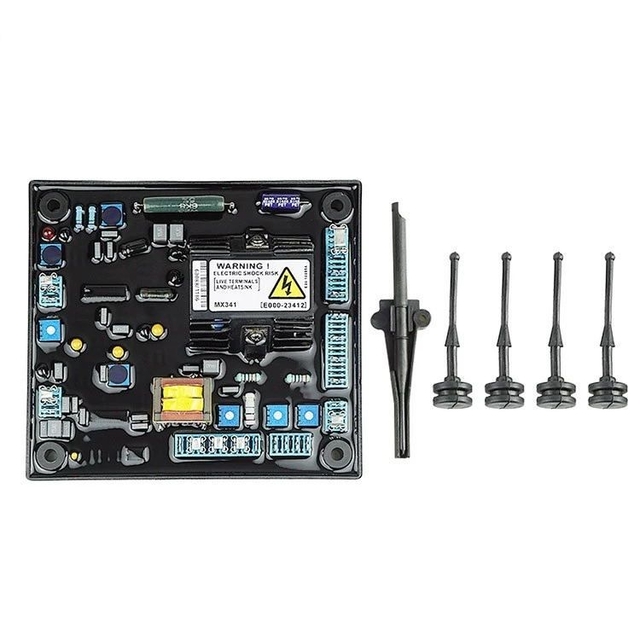

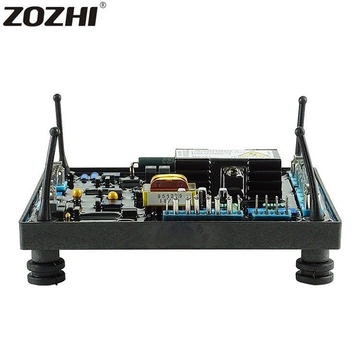

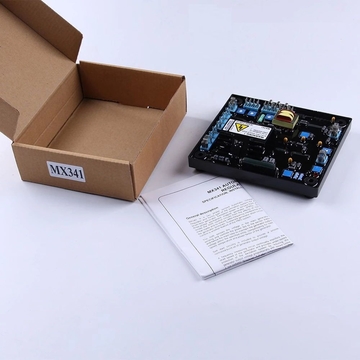

MX341 Automatic Voltage Regulator

0 customer reviews {{parseInt(detail_data.left_num) ? 'In Stock.' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} SKU.103953
  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

$   25
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{detail_data.displayed_price.ex_sell_type}}
{{ item.num }} pieces
$ {{ item.price }}
{{item.name}}* {{item.values[0].value}}
{{sku.value}}
Quantity:
{{detail_data.displayed_price.unit_type_name}}(s)
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
To Be Negotiated
to United States Change
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details
Total Price:
$ 25
Shipping calculated at checkout.
Weight:
{{Number(packInfo.weight).toFixed(2)}} KG
Package:
{{packInfo.length}}cm*{{packInfo.width}}cm*{{packInfo.height}}cm
  • Description
  • MX3413 Phase 30KVA Generator Automatic Voltage Regulator AVR MX341


    Generator AVR 3 PhaseMX341
    Sensing Input190-264V ac max, 1 phase, 2 wire
    Frequency50-60 Hz nominal
    Power Input(PMG)170-220V ac max, 3 phase, 3 wire
    Current3A/phase
    Frequency100-200 Hz nominal
    Output VoltageMax 120V dc
    CurrentContinuous 2.7 A Intermittent 6A for 10 secs
    Resistance15 ohms minimum
    Regulation+/- 1%
    Generator Power200-500kw


    Features

    * Voltage regulation < +/-1%
    * Soft start voltage ramping
    * Sensing voltage loss protection
    * 120 or 240 Vac sensing, jumper selectable
    * Under frequency roll-off protection
    * With under frequency LED indicator


    MX341 Automatic Voltage Regulator

    MX341 Automatic Voltage Regulator

    MX341 Automatic Voltage RegulatorMX341


    AVR MX341 VOLTAGE REGULATOR is a two-phase sensed Automatic Voltage Regulator and forms part of the excitation system for a brush-less generator.


    Automatic Voltage Regulator Sensing Input 120V or 240V



    MODELSENSING INPUTPOWER INPUTMAGNETIC FIELDOUTPUTPRESSURE REGULATING ACCURACY



    Voltage(max)Current(within 10 sec)with 4% rngine governing
    SX460120(95-132VAC)240(190-264VAC),1phase,2wire, with copper jumper options90VAD at 207VACcontinuous 4A,intermittent 10A<±1%RMS
    SX460-A
    SX440190-264VAC,1phase,2wire.
    SX440-A
    AS440120(95-132VAC)240(190-264VAC),1phase,2wire, with copper jumper options
    AS480
    MX341190-264VAC, 1phase,2wire170-220VAC, 3Phase,3wire120VADcontinuous 2.7A,intermittent 6A<±0.5%RMS
    MX321190-264VAC, 2phase,3wire120VADcontinuous 3.7A,intermittent 6A
    MX450170-264VAC,1phase,2wire90VADcontinuous 4A,intermittent<±1%RMS


    How to choose Stanford Generator AVR
    Generator/AVRSA465SA465SX460SX440SX421MS341MX321
    BC16

    STD



    BC182

    STD



    BC184AUX WDGOPTSTD
    LOOSE

    UC224

    STDOPTOPTOPT(PMG)OPT(PMG)
    UC274

    STDOPTOPTOPT(PMG)OPT(PMG)
    HC4


    STDOPTOPT(PMG)OPT(PMG)
    HC5


    STDOPTOPT(PMG)OPT(PMG)
    HC6





    STD
    HC/MV7





    STD







  • Specification
    • Model Number MX341
    • Phase Single phase 、 Three phase
    • GUM Type Hard Gum, Soft For Option
    • Capacitor Color Blue Capacitor, Red For Option
    • Quality Class A Class High Quality
    • Certificate CE,RoHS,ISO9001
    • Warranty 1 Year
    • Weight 0.5 kg
    • Package 20.00cm*20.00cm*6.00cm
