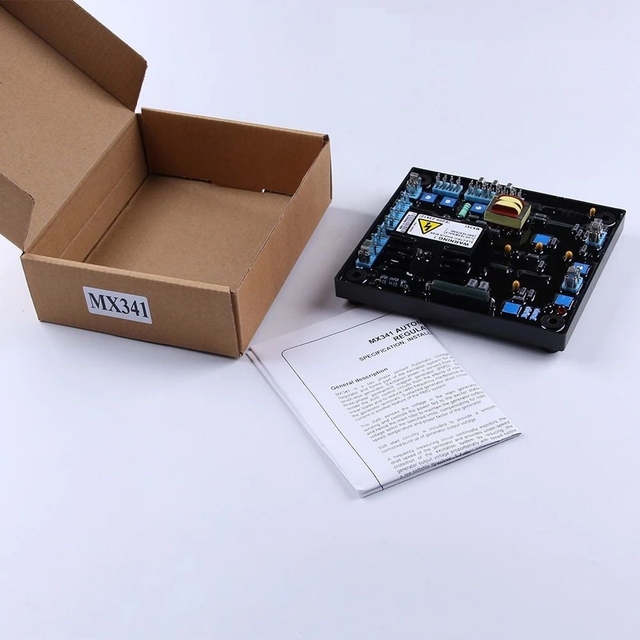

MX341 Automatic Voltage Regulator

Name: MX341 Automatic Voltage Regulator
Brand: ZOZHI
SKU: 103954
Price: 20 USD
Availability: InStock

0 customer reviews {{parseInt(detail_data.left_num) ? 'In Stock.' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} SKU.103954

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews Request Quote

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Download
Questions & Answers
Customer Reviews

$ 20

0Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{detail_data.displayed_price.ex_sell_type}}

{{ item.num }} pieces

$ {{ item.price }}

{{item.name}}* {{item.values[0].value}}: {{sku.value}}

Quantity:

{{detail_data.displayed_price.unit_type_name}}(s)

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Shipping:

Free Shipping

Can't deliver

To Be Negotiated

to United States Change

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details

Total Price:

$ 20 ~~$ 0.00~~

Shipping calculated at checkout.

Weight:

{{Number(packInfo.weight).toFixed(2)}} KG

Package:

{{packInfo.length}}cm*{{packInfo.width}}cm*{{packInfo.height}}cm

Returns:

Read details

Add to Wish list

You May Also Like

MX341 Automatic Voltage Regulator

$ 25 ~~$ 0.00~~
AVR AS440 3 Phase 30KVA Generator Automatic Voltage Regulator

$ 12 ~~$ 0.00~~

Description
Description
Specification
Download
Customer Reviews
Questions & Answers

Description

3 Phase 30KVA Generator Automatic Voltage Regulator AVR MX341

Generator AVR 3 Phase	MX341
Sensing Input	190-264V ac max, 1 phase, 2 wire
Frequency	50-60 Hz nominal
Power Input(PMG)	170-220V ac max, 3 phase, 3 wire
Current	3A/phase
Frequency	100-200 Hz nominal
Output Voltage	Max 120V dc
Current	Continuous 2.7 A Intermittent 6A for 10 secs
Resistance	15 ohms minimum
Regulation	+/- 1%
Generator Power	200-500kw

Features

* Voltage regulation < +/-1%
* Soft start voltage ramping
* Sensing voltage loss protection
* 120 or 240 Vac sensing, jumper selectable
* Under frequency roll-off protection
* With under frequency LED indicator

AVR MX341 VOLTAGE REGULATOR is a two-phase sensed Automatic Voltage Regulator and forms part of the excitation system for a brush-less generator.

Automatic Voltage Regulator Sensing Input 120V or 240V

MODEL	SENSING INPUT	POWER INPUT	MAGNETIC FIELDOUTPUT		PRESSURE REGULATING ACCURACY
			Voltage(max)	Current(within 10 sec)	with 4% rngine governing

SX460	120(95-132VAC)240(190-264VAC),1phase,2wire, with copper jumper options		90VAD at 207VAC	continuous 4A,intermittent 10A	<±1%RMS
SX460-A
SX440	190-264VAC,1phase,2wire.
SX440-A
AS440	120(95-132VAC)240(190-264VAC),1phase,2wire, with copper jumper options
AS480
MX341	190-264VAC, 1phase,2wire	170-220VAC, 3Phase,3wire	120VAD	continuous 2.7A,intermittent 6A	<±0.5%RMS
MX321	190-264VAC, 2phase,3wire		120VAD	continuous 3.7A,intermittent 6A
MX450	170-264VAC,1phase,2wire		90VAD	continuous 4A,intermittent	<±1%RMS

How to choose Stanford Generator AVR
Generator/AVR	SA465	SA465	SX460	SX440	SX421	MS341	MX321
BC16			STD
BC16			STD
BC182			STD
BC184	AUX WDG	OPT	STD		LOOSE
UC224			STD	OPT	OPT	OPT(PMG)	OPT(PMG)
UC274			STD	OPT	OPT	OPT(PMG)	OPT(PMG)
HC4				STD	OPT	OPT(PMG)	OPT(PMG)
HC5				STD	OPT	OPT(PMG)	OPT(PMG)
HC6							STD
HC/MV7							STD

Specification

Model Number MX341
Phase Single phase 、 Three phase
GUM Type Hard Gum, Soft For Option
Capacitor Color Blue Capacitor, Red For Option
Quality Class A Class High Quality
Certificate CE,RoHS,ISO9001
Warranty 1 Year
Weight 0.5 kg
Package 20.00cm*20.00cm*6.00cm
